BFT Gate Access Control Nationwide

BFT Gate Access Control in Weatherford: What to Know First

We service and repair BFT gate access control systems across Weatherford as an independent BFT service provider, not a manufacturer-authorized shop. Most BFT keypad, remote, and phone-entry repairs are completed same-day or next-day once we diagnose the board or wiring fault, and you get a written price before we touch a single terminal. Our BFT access control work typically runs $145 to $680 depending on whether we’re replacing a receiver, rewiring a keypad, or swapping a control board.

Call (940) 353-4158

This page is for Weatherford homeowners and property managers who already own a BFT gate and want the access system working again without a sales pitch. If your BFT keypad stopped responding, remotes won’t program, or the phone-entry box won’t release the gate, call (940) 353-4158 and tell us what the system is doing. We’ll name the likely fault before we schedule the truck.

How BFT Products Fail - and How We Fix Them

• BFT Deimos control boards and the heat soak problem. Weatherford summers run hot, and the Deimos BT A400 board sits inside a steel enclosure that bakes all afternoon. The solder joints on the relay that fires the gate motor expand and contract until they crack. Symptom: the keypad beeps, the display lights, but the gate does not move. We reflow or replace the relay and photograph the old joint so you can see the fracture.
• BFT Mitto remote receivers going deaf. The Mitto series receiver antenna is a short wire inside the control box. If the box got mounted behind a steel post or near a transformer, range drops from 100 feet to about 15. The fix is usually antenna relocation or a shielded receiver swap, not a whole new board. We bring a signal meter and show you the before-and-after range reading.
• BFT keypads losing memory after power flickers. The older BFT RIGEL 5 keypad has no battery backup on the memory chip. A brownout in a Weatherford storm wipes codes, and homeowners think the keypad died. We reflash or replace the keypad and add a small inline surge protector so it does not happen again on the next thunderstorm.
• BFT photocell (photo-eye) inputs on the control board failing safe. When the BFT board sees a fault on the photocell input, it refuses to let the gate close or sometimes open. The cause on BFT boards is usually a corroded terminal block, not a bad photo-eye itself. We test the eye with a meter before replacing anything. A $12 terminal strip often saves a $140 board.
• BFT phone-entry modules and the dial-tone handshake. The BFT GSM/phone interface expects a clean analog dial tone. One of the companies that installed BFT systems around Weatherford in the 2010s ran phone lines through buried conduit without weather-sealing the splices. Moisture in the splice creates static the BFT module reads as a failed line. We pull the splice, redo it, re-tone the line, and the entry system comes back without a component swap.

Our BFT Gate Access Control Process

Here is what happens when you call us about a BFT access control issue in Weatherford.

1. 1
   Call and describe the symptom. We ask what the system is doing: no response to the keypad, remote works but keypad does not, gate opens but the phone entry does not release. We name the most likely fault on the phone so you know what we’re thinking before we arrive.
2. 2
   On-site diagnostic with the lid off. We open the BFT control box, test the power supply, check each input, and photograph every finding. You’ll see the test readings, not just hear about them.
3. 3
   Written price before work. We hand you a flat number for the repair. That price is agreed before we pick up a tool. No open-ended hourly billing.
4. 4
   Repair or replacement of the failed part. Where the BFT OEM part is the right call for warranty and longevity, we use it. Where a quality aftermarket terminal block, capacitor, or relay meets or exceeds spec at a lower cost, we show you both options and let you decide.
5. 5
   Full function test. We test every input: keypad, remote, phone entry, card reader, photo-eye. We cycle the gate ten times. We set limit switches and record the values.
6. 6
   Documentation handoff. You receive a photo log of every adjustment, a written record of the part numbers installed, and a dated service entry. Under Clause 4 of The Haven Standard, evidence comes standard.

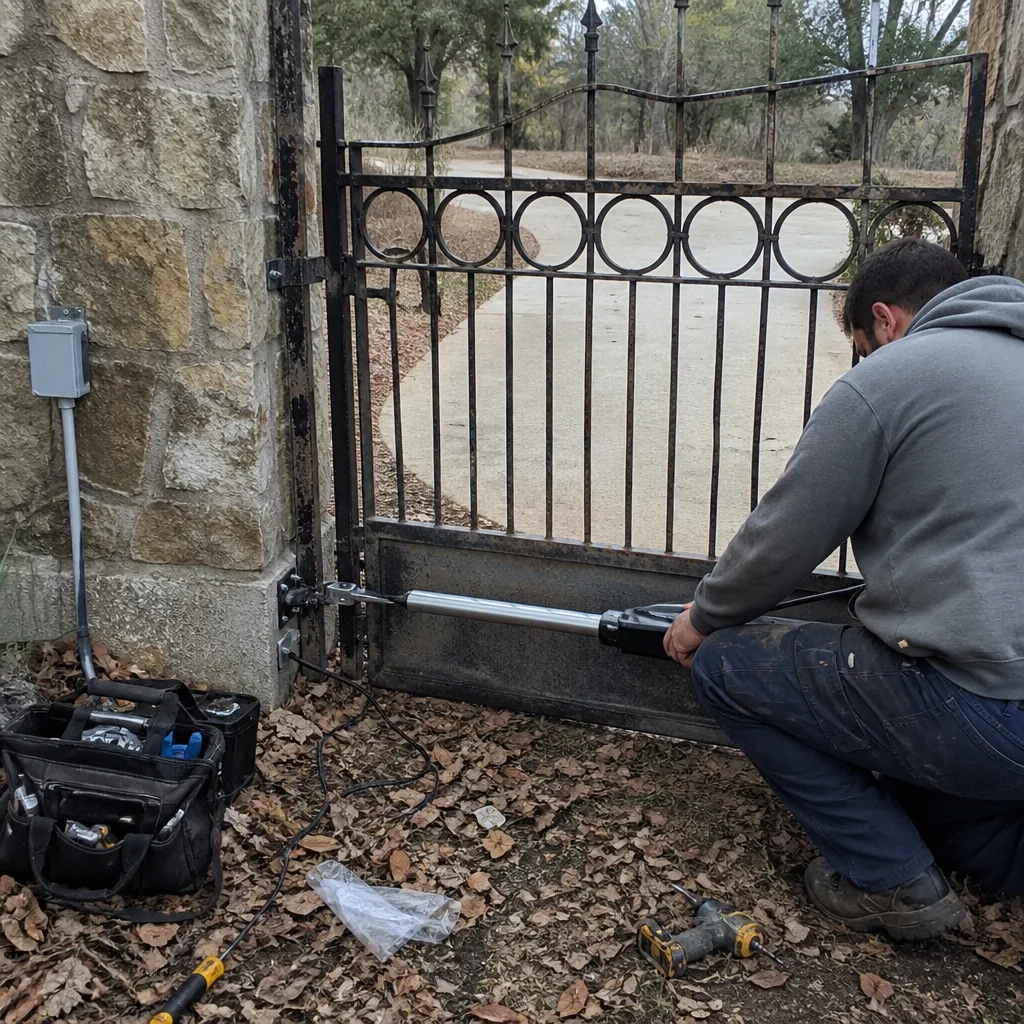

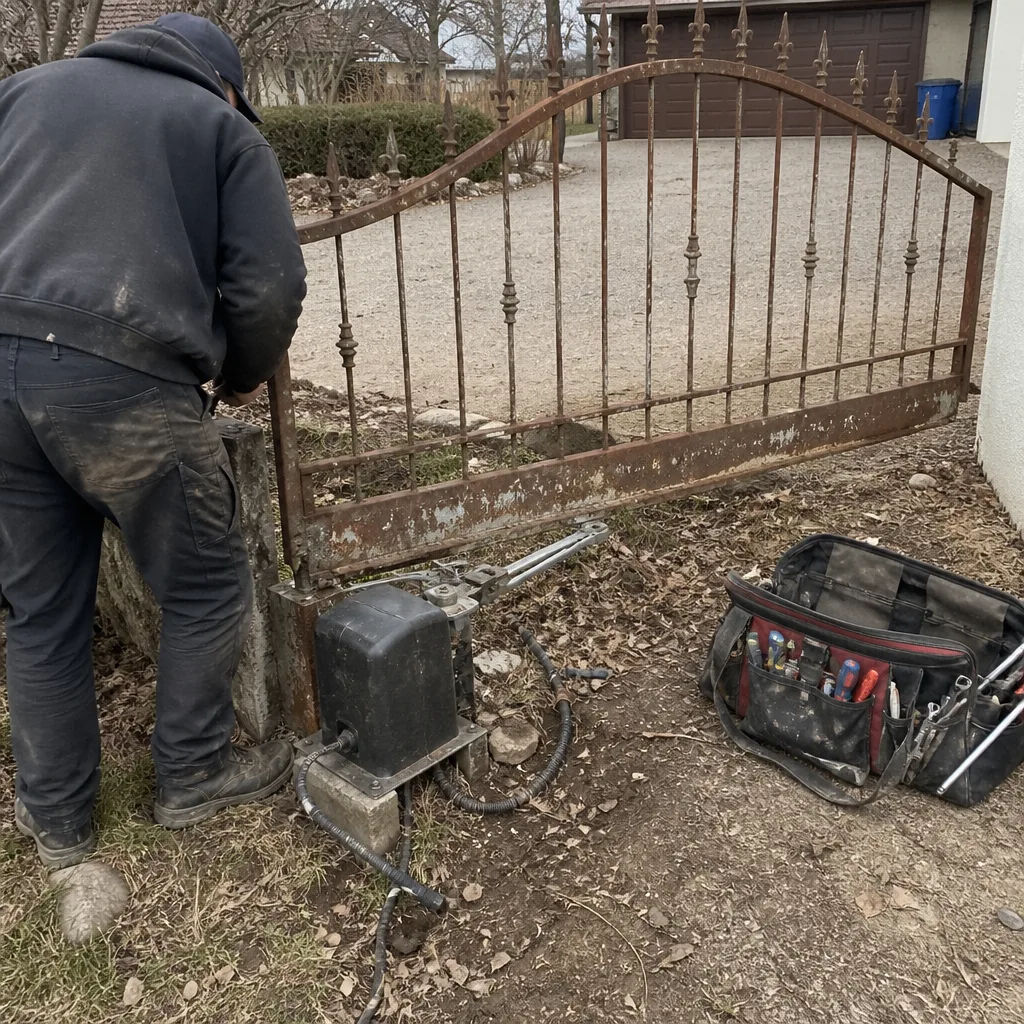

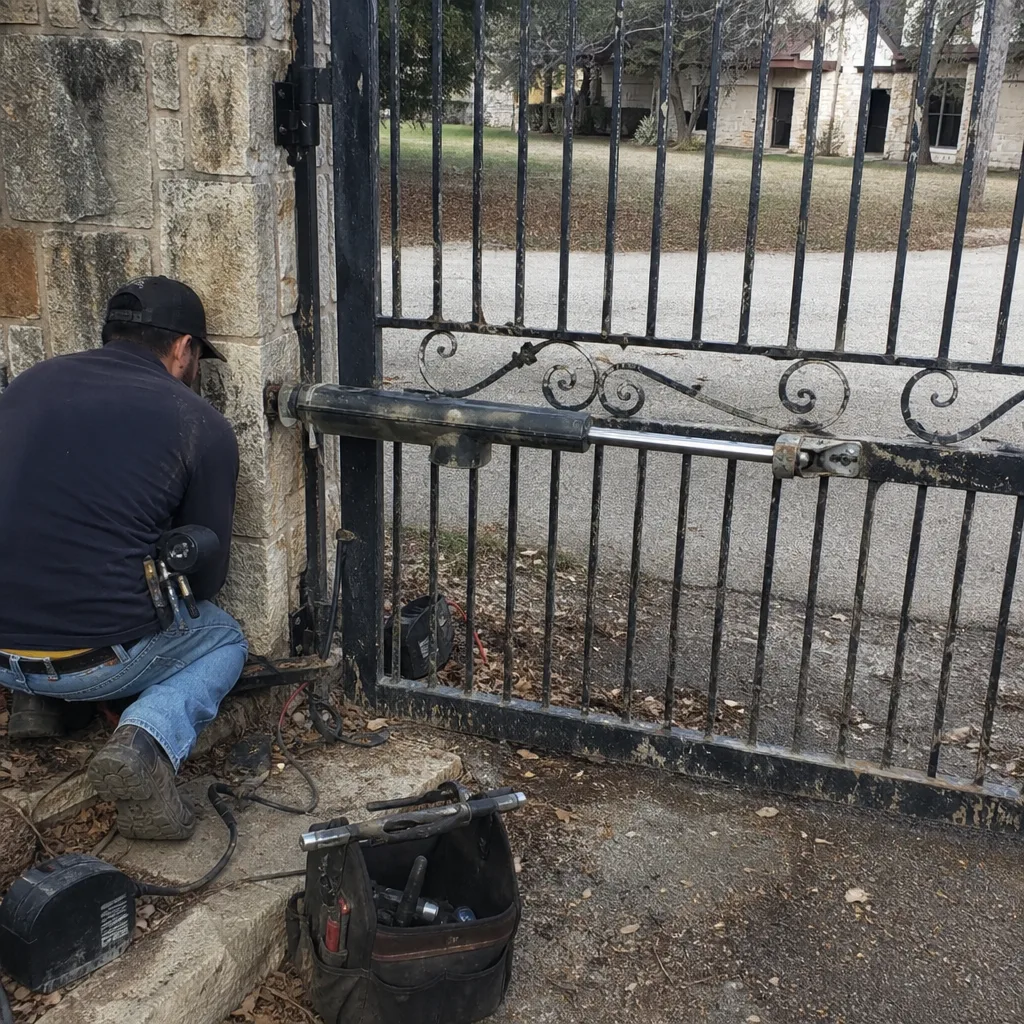

Before

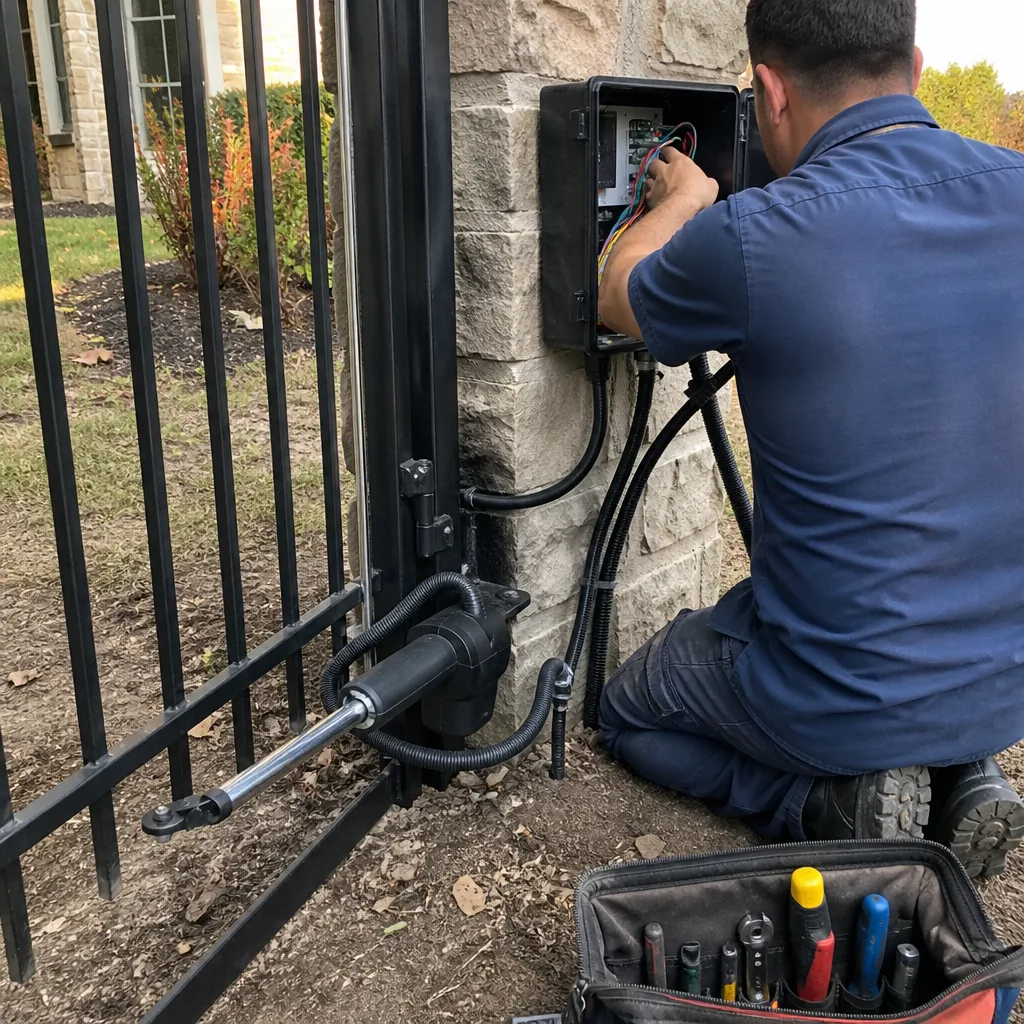

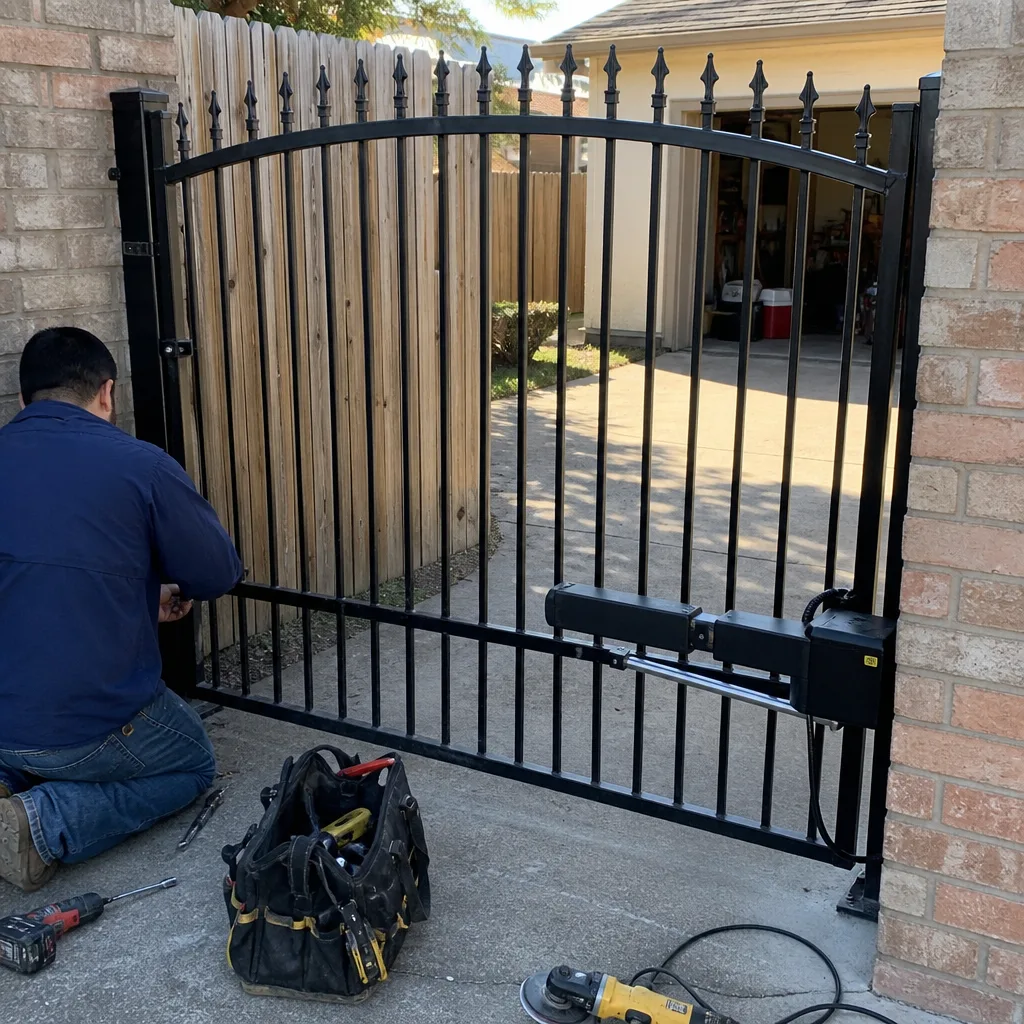

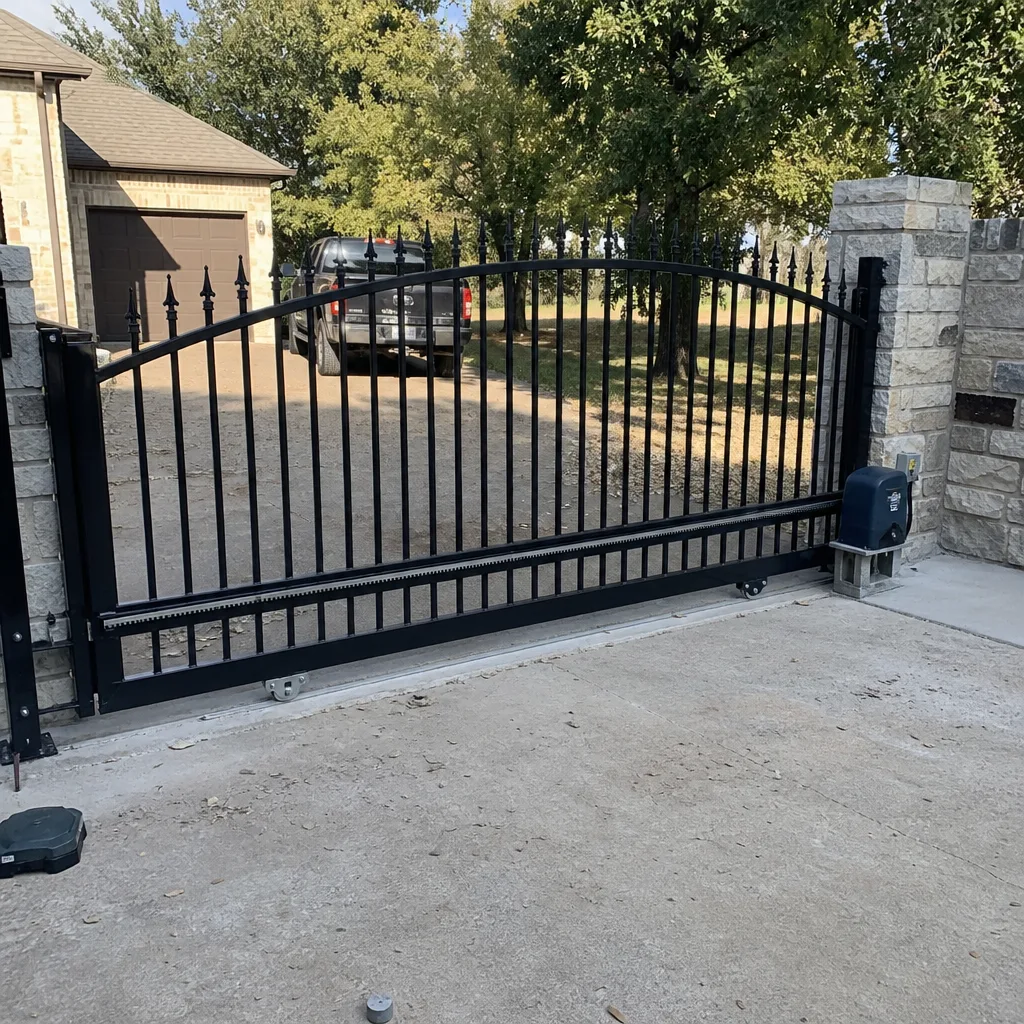

After

What BFT Gate Access Control Costs in Weatherford

Here are the honest price ranges we quote for BFT access control work in Weatherford.

What moves the price is whether the board is repairable or has to be replaced, which BFT series you own, and whether the fault is in the control box or in the buried wiring. We do not charge a surprise invoice at the end. The number handed to you before work is the number on the final invoice. Estimates are free. Call (940) 353-4158 and ask Adrian to walk through the likely cost for your BFT model.

Why Weatherford Homeowners Call Vance Gate Repair Weatherford for BFT Work

We service BFT systems and eight other major gate-automation brands: LiftMaster, FAAC, Linear, Viking, Ghost Controls, DoorKing, Elite, and Mighty Mule. If your BFT access control is failing but another brand of motor is running the gate, we work on both in the same visit. No haggling, no brand steering.

Every BFT job we complete carries the 365-Day Done Right Promise. If the repair is not right, we make it right within 365 days at no additional charge. Every visit includes a documented photo record of what was found, what was set, and what was replaced, under The Haven Standard. And a live person answers the phone 24/7. No voicemail loop, no automated attendant, no answering service. You call, a person picks up.

Adrian Vance has spent more than a decade diagnosing gate failures, including BFT boards, BFT receivers, and BFT keypads across Weatherford, from ranch-style driveway gates near the Weatherford College corridor to subdivision entrances off Tin Top Road. He writes down every finding before touching a fastener. Name what you found, name what it costs, name what you left behind.

FAQs
